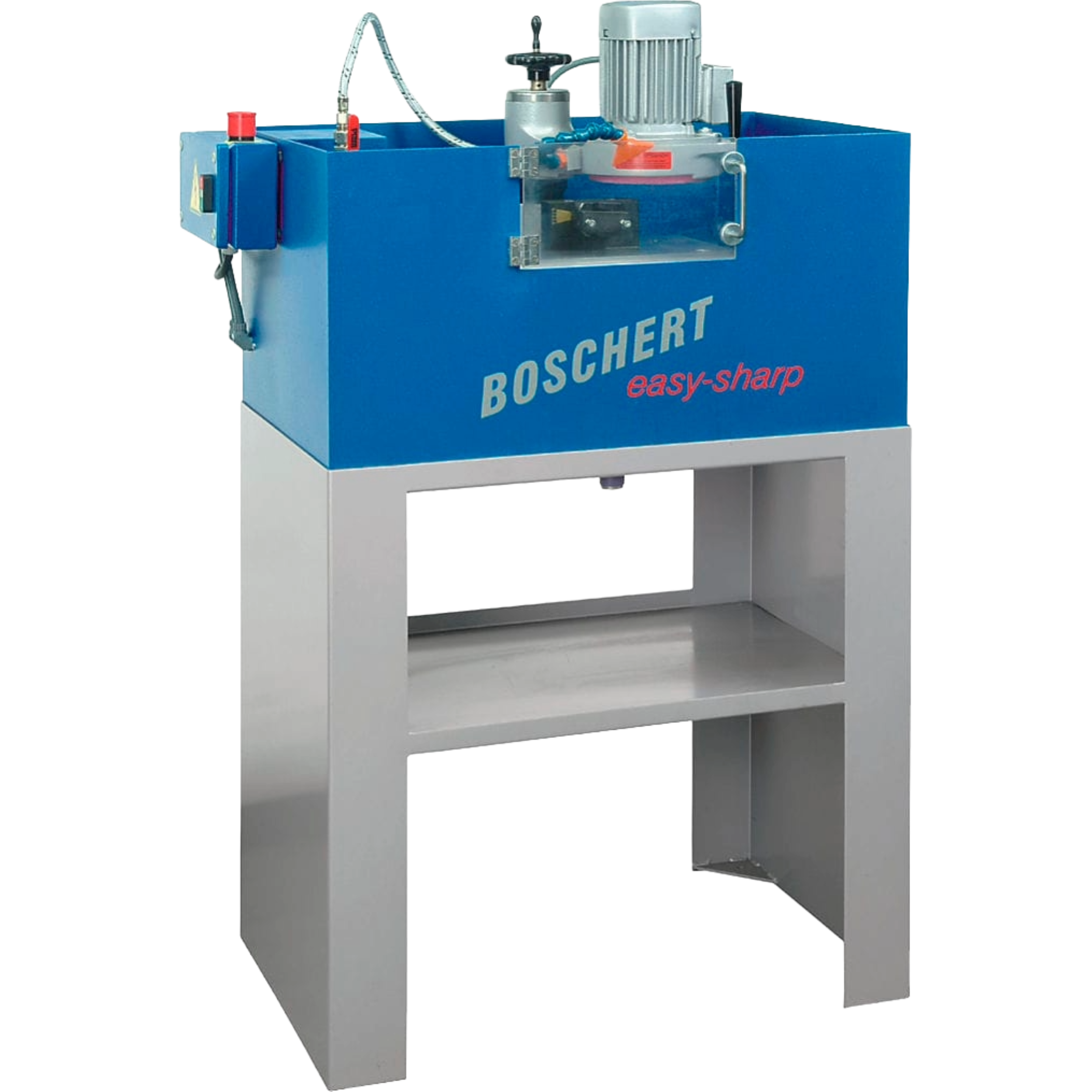

The Boschert EasySharp provides a simple, cost-effective way to sharpen punches and dies in-house. Regular sharpening helps maintain punch quality, extend tool life, reduce burrs, and protect your punching machine.

Designed specifically for punch tooling, EasySharp combines precise manual adjustment with integrated coolant for consistent, controlled grinding.

Key Features

• Sharpen punches and dies in-house

• Precise 0.02 mm (0.0008") feed adjustment

• Integrated coolant system

• 175 mm (7") grinding wheel

• Adapters available for Trumpf, Amada/Prima Power, and Boschert CU tooling

• Capability for angled/shear punches

• Compact, simple manual operation

Specifications

Grinding Wheel: 175 mm (7")
Grinding Speed: 3,000 RPM
Vertical Adjustment: 150 mm (6")
Feed Increment: 0.02 mm (0.0008")
Working Area: 400 × 150 mm (15.7" × 6")
Machine Size: 800 × 520 × 1,300 mm (31.5" × 20.5" × 51.2")
Weight: 180 kg (approx. 397 lbs.)
Motor: 2.2 kW

See the EasySharp in Action

Watch the Boschert EasySharp sharpen punch tooling and see how the machine operates:

Bring Tool Sharpening to your shop

Contact Zimco Tool for EasySharp pricing, availability, and help selecting the correct adapters for your tooling.
